Product Details:
|
| Rated Power: | 5W-500W | Resistance: | 2.2Ω - 10KΩ |
|---|---|---|---|
| Tolerance: | ±5%,±10%,±20% | Colour: | Black |
| Temperature Coefficient: | 100PPM-200PPM | Inductance: | Non Inductive |
| High Light: | 500W High Voltage Resistor,Carbon Film High Voltage Resistor,500W High Voltage Power Resistor |
||
500W Non Inductive High Power Carbon Film High Voltage Resistors
Features:
1.High-power frequency non-inductive carbon resistors have two types:RCF(High-power
2.RCF and RCFG resistors'tubular tips coating with silver or gold as pole,low-inductance non-helical
3.Afford high power ,suitable for the application with large current as well as high frequency circuit.
4.RCF and RCFG resistors use special oxide film technology attached in the ceramic rod ,coated
Applications:
Widely used in high-voltage electrical instrument equipment,load resistor and bleeder
Advantages:
1.Manufacturing standard &customs design;
2.Sample orders are available;
3.Immediately Response,reply you for your inquiry in 24 hours;
Specifications :
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | B--C--D---F---G---J--K |
| Temperature Coefficients | R0:Room Temperature(T0)Resistance Value R1:Room Temperature T0+100℃(T1)Resistance Value |
±15～±1000PPM/℃ |
| Short Time Overload | 5 times rated power for 5 seconds,but not over 1.5 times Umax | △R≤±(0.2％+0.1Ω) |
| Insulation Resistance | 1000V DC | ≥10GΩ1Min |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 1000hours | △R≤±(0.5％+0.1Ω) |
| Humidity Resistance | Temp.:40±2℃ ,Humidity:90％-95％.240hours | △R≤±(0.4％+0.1Ω) |
| High /Low Temperature Resistance | store at - 65 ℃ ~ 155 ℃ for 2H ,cycle for 5 times | △R≤±(0.2%+0.1Ω) |
| Operating Temperature | -55℃～125℃ | / |

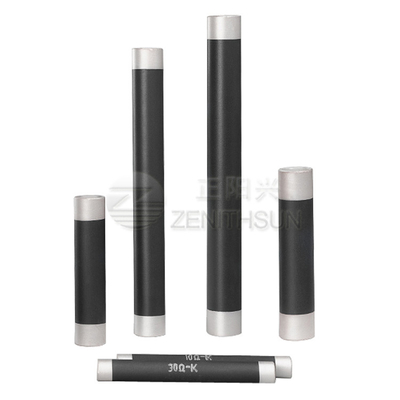

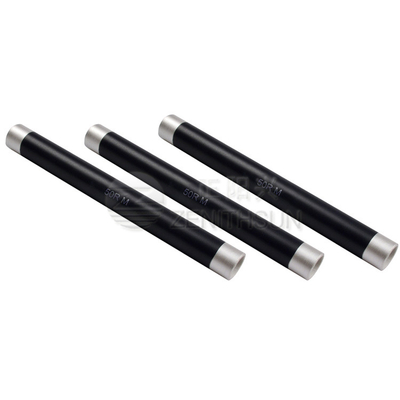

Product Image:
