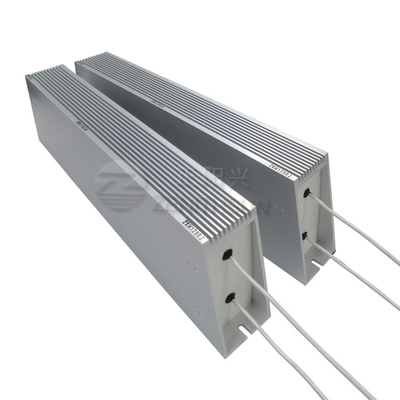

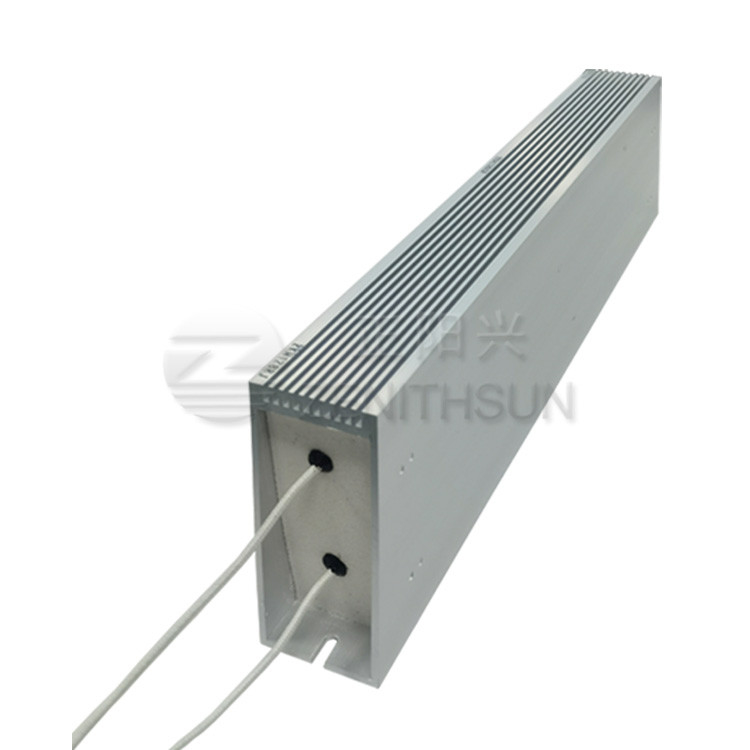

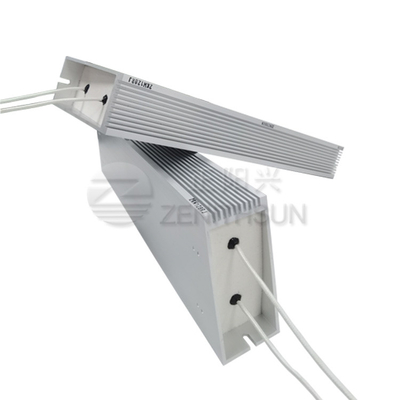

1000W High Power Aluminum Enclosure Braking Resistor For Inverter
Structure
1.An aluminum encased consists of an alloy metal coil-type resistance element assembled into an aluminum enclosure.
2.Following high-temperature anodization,the enclosure is filled with a special non-flammable cement paste and after hardening,insulation is applied through a high temperature process.
3.Since this component is embedded in the heat-proof cement,it is not affected by external mechanical force,and dusty environments.
Features
1.Durable,vibration-proof,dissipates heat well and low temperature coefficient with resistance varying in direct proportion.
2.ASZ series successfully applied for national patent (ZL2004300866567)
3.Specification:80W60R,80W100R,80W20R,100W20R,100W100R,120W68R,150W20R,200W20R,200W200R,300W20R,
300W150R,300W200R,400W150R,400W20R,500W100R,500W20R,800W75R,1040W50R,1040W75R ect.
4.For non-standard technical requirements and custom special applications,please contact us to discuss the details.
5.Conforms to the ROHS standard and the LEAD-FREE non-lead standard.
Specification
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | B---D---F---G---J--K |
| Temperature Coefficients | R0:Room Temperature(T0)Resistance Value R1:Room Temperature T0+100℃(T1)Resistance Value |
±100～±250PPM/℃ |
| Rated Load | 40℃,rated voltage,1hour | △R≤±(3％+0.1Ω) |
| Short Time Overload | 5 times rated power for 10s;10 times rated power for 5s;25 times rated power for 1s | △R≤±(2％+0.1Ω) |
| Dielectric Withstand Voltage | 2 times Rated Power Voltage +1kv AC 60s (with grounding), leakage current 2.5mA ; 2 times Rated Power Voltage +2kv AC 60s (with grounding), leakage current 2.5mA ; |
△R≤±(0.1％+0.05Ω) |
| Insulation Resistance | 1000V DC | 50M-1000MΩ1Min |
| Terminal Tensile Strength |
wire diameter ≤1.5 with 20N,wire diameter ≥1.5 with 40N, |
No off |
| Vibration resistance | 1.5mm,10-55-10Hz,each 2hours | No damage,No off |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 500hours | △R≤±(3％+0.1Ω) |
| Thermal Shock | At 30℃,30min,-55℃,15min | △R≤±(0.5％+0.1Ω) |
| Humidity Resistance | Temp.:40±2℃ ,Humidity: 90％-95％.240hours | △R≤±(3％+0.1Ω) |
| Low Temperature Resistance Testing | store at -65℃±3℃ for 2H | △R≤±(1%+0.1Ω) |
| High Temperature Resistance Testing | store at 70 ℃± 2 ℃ for 16h, connect the rated voltage DC circuit for 1s | △R≤±(1%+0.1Ω) |
| Non-flammability | 10 times rated power, power on for 5s | without combustion |
Applications
Widely used in frequency converter,elevator,hoisting, ship,electric power,welding,power supply,military industry,aviation,wind power generation,solar power generation, automation equipment, railway system and other industries,and can be made into load banks according to the customers requests.
