| Rated Power: | 1/4W-5W | Resistance: | 10Ω - 500MΩ |
|---|---|---|---|
| Tolerance: | ±2%,±5%,±10% | Colour: | Yellow |
| Temperature Coefficient: | 50PPM-100PPM | Lead Out: | Tin-plated |
| High Light: | 3W Non-Inductive Resistor,100M J Non-Inductive Resistor,High Voltage non inductive power resistors |
||
3W100M J Non-Inductive Precision High Voltage Flat Resistors With Low TC
Structure :
1.The resistor film with precious metal ruthenium slurry,with stable electrical properties.
2.Technological Process:electrode printing electrode sintering resistor printing resistor sintering medium printing medium sintering,then resistance adjustment,welding,encapsulation and other processes.
3.Submerged in dielectric oil or epoxy resin for best use results.
Features:
1.Flat high voltage dividers with proprietary non-inductive design, high precision, low ratio TC.
2.Low temperature coefficient, low voltage coefficient, high stability, high temperature silicone coating;
3.Lead Material:copper,tin-plated ;
Specifications :
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | B--C--D---F---G---J--K |
| Temperature Coefficients | R0:Room Temperature(T0)Resistance Value R1:Room Temperature T0+100℃(T1)Resistance Value |
±15～±1000PPM/℃ |
| Short Time Overload | 5 times rated power for 5 seconds,but not over 1.5 times Umax | △R≤±(0.2％+0.1Ω) |
| Insulation Resistance | 1000V DC | ≥10GΩ1Min |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 1000hours | △R≤±(0.5％+0.1Ω) |
| Humidity Resistance | Temp.:40±2℃ ,Humidity:90％-95％.240hours | △R≤±(0.4％+0.1Ω) |
| High /Low Temperature Resistance | store at - 65 ℃ ~ 155 ℃ for 2H ,cycle for 5 times | △R≤±(0.2%+0.1Ω) |
| Operating Temperature | -55℃～125℃ | / |
Applications:
Widely used in high voltage power equipment,medical CT and X-ray machines,high voltage testing equipment,high voltage power supply,vacuum equipment,voltage divider,high voltage circuit,capacitor discharge circuit,high voltage buffer circuit,environmental protection equipment,etc.

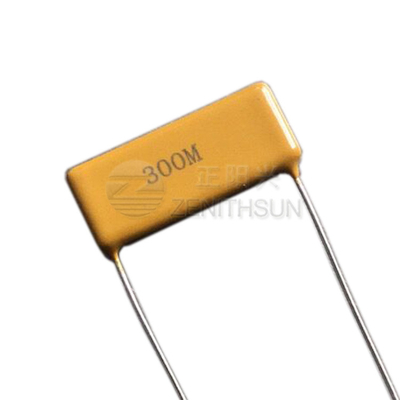

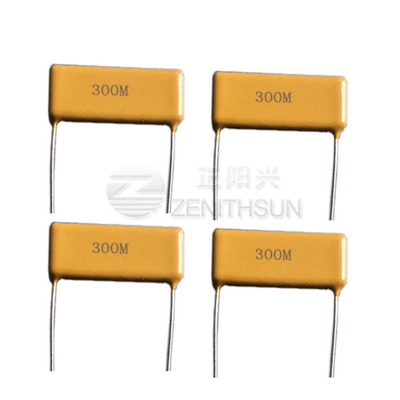

Product Image:
