Product Details:
|
| Rated Power: | 0.5W-300W | Resistance: | 1Ω - 1GΩ |
|---|---|---|---|
| Tolerance: | ±5%,±10% | Colour: | Without Coating |
| Temperature Coefficient: | 20PPM-150PPM | Lead Material: | Gold Plated Or Copper,tin-plated |
| High Light: | Non-Inductive High Voltage Power Resistor,Thick Film High Voltage Power Resistor,Non-Inductive Power Resistor |
||
Non-Inductive Thich Film High Voltage Power Resistors without coating
Structure :
1.Screen printing,resistor film printed layer with thickness of tens of microns,sintered at temperature.
The matrix is 95% aluminum oxide ceramic,with good thermal conductivity and high mechanical strength.
The resistor film with precious metal ruthenium slurry,with stable electrical properties.
2.The products are available with a silicone or epoxy coating,feature a wide range of tolerances and temperature coefficients.
Features:
1.Non-Inductive,Resistance-high voltage,small size,high power,long life,moisture resistance,high stability .
2.Lead Material:copper,tin-plated ,bolt /screw end caps ;
3.High voltage power resistors series combine proprietary non-inductive resistance system and design to achieve low temperature coefficient,low voltage coefficient,high stability,increased high operating voltages and high power ratings.
Specifications :
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | B--C--D---F---G---J--K |
| Temperature Coefficients | R0:Room Temperature(T0)Resistance Value R1:Room Temperature T0+100℃(T1)Resistance Value |
±15～±1000PPM/℃ |
| Short Time Overload | 5 times rated power for 5 seconds,but not over 1.5 times Umax | △R≤±(0.2％+0.1Ω) |
| Insulation Resistance | 1000V DC | ≥10GΩ1Min |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 1000hours | △R≤±(0.5％+0.1Ω) |
| Humidity Resistance | Temp.:40±2℃ ,Humidity:90％-95％.240hours | △R≤±(0.4％+0.1Ω) |
| High /Low Temperature Resistance | store at - 65 ℃ ~ 155 ℃ for 2H ,cycle for 5 times | △R≤±(0.2%+0.1Ω) |
| Operating Temperature | -55℃～125℃ | / |
Applications:
Precision High Voltage Power Resistors are designed to meet the demanding requirements of TWT power suppliers,electron microscopes,X-ray systems,high resolution CRT displays,geophysical instruments and power transmission lines,the ideal solution for all applications in X-ray technology, high voltage measuring technology and energy transmission systems.

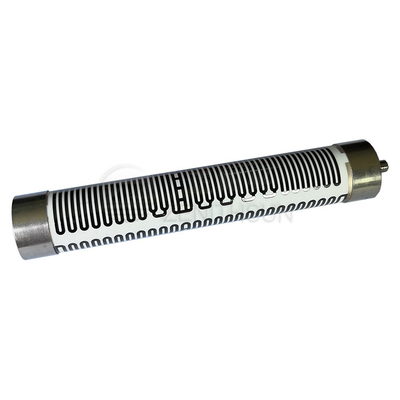

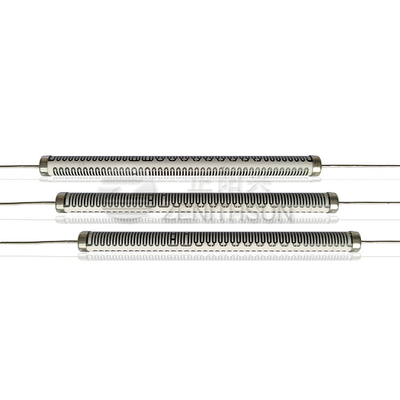

Product Image:
How to make an order:
Model no._ Value_Tolerance
For example:
RIZ/RHP-39 200M 1%
