Product Details:
|
| Rated Power: | 15W-20KW | Resistance: | 0.1Ω - 100KΩ |
|---|---|---|---|
| Tolerance: | ±1%.±5%,±10% | Colour: | Green |
| Leading Out: | Taps/Termianls | Inductance: | Non-inductive / Inductive |
| High Light: | 300W Wire Wound Resistor,Painted Type Wire Wound Resistor,High Power 300W Resistor |
||

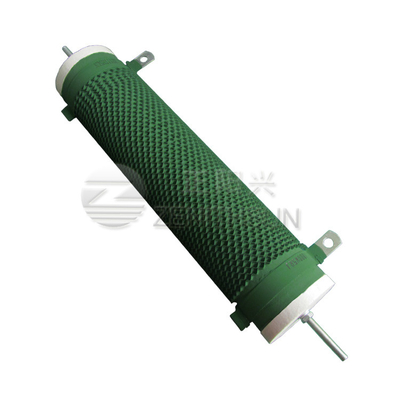

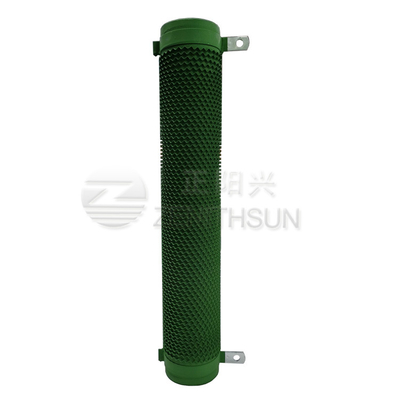

300W Painted Type High Power Wirewound Ripple Braking Resistors
Structure:
1.The high temperature resistance ceramic tube is used as the resistance matrix,is wound with chrominum alloy wire ,then coated with high temperature & non-flammable resin for protection to let resistors with better appearance and heat dissipation effect,after natural drying,baking at different temperatures before assembly.
2.Different assembly & fitting available,different styles of mounting brackets
3.Single unit with multi-resistance/ Multi-terminals also available;
4.Non-inductive & variable type on requests;
5.Working voltage and Nominal resistance value are related to Ohm’s law.
Features:
1.These resistors are suitable as loading resistor,braking resistor,capacitor discharge,resistive load simulation,machinery,
machinery and equipment higher power application.
2.In different applications,called ceramic wirewound resistors,ceramic tube resistors,high power resistors,ripple resistors,braking resistors,charge resistor,discharge resistors,dump load resistors,current limiting resistors, burn-in resistors or load resistors,ect.
3.Resistance adjustable version is available:DSR series .
4.Resistance box and load bank available with power up to 2000kW.
5.Support precision resistance tolerance requirement.
Specification
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | B---D---F---G---J--K |
| Rated Load | 40℃,rated voltage,1hour | △R≤±(3％+0.1Ω) |
| Short Time Overload | 5 times rated power for 10s | △R≤±(0.2％+0.1Ω) |
| Dielectric Withstand Voltage | 2 times Rated Power Voltage +1kv AC 60s (with grounding), leakage current 2.5mA ; 2 times Rated Power Voltage +2kv AC 60s (with grounding), leakage current 2.5mA ; |
△R≤±(0.1％+0.05Ω) |
| Insulation Resistance | 500V DC | ≥10GΩ1Min |
| Terminal Tensile Strength | 40N | No off |
| Vibration resistance | 1.5mm,10-55-10Hz,each 2hours | No damage,No off |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 500hours | △R≤±(3％+0.1Ω) |
| Low Temperature Resistance Testing | store at -65℃±3℃ for 2H | △R≤±(1%+0.1Ω) |
| High Temperature Resistance Testing | store at 70 ℃± 2 ℃ for 16h, connect the rated voltage DC circuit for 1s | △R≤±(1%+0.1Ω) |
| Non-flammability | 10 times rated power, power on for 5s | without combustion |
Applications:
Widely used in frequency converter, elevator,hoisting,ship,electric power,welding,power supply,military industry,aviation,wind power generation,solar power generation,generator test load,automation equipment,railway system and other industries .
