Product Details:
|
| Rated Power: | 100W-20KW | Resistance: | 1Ω - 10KΩ |
|---|---|---|---|
| Tolerance: | ±10% | TCR: | ± ~ 200PPM 400PPM |
| Body: | Resistance Ceramic Tube | ||
| High Light: | 5000W Power Wirewound Resistor,High Power Wirewound Resistor,Slide adjustable load resistor |
||

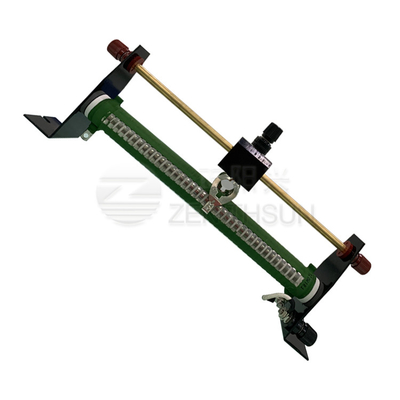

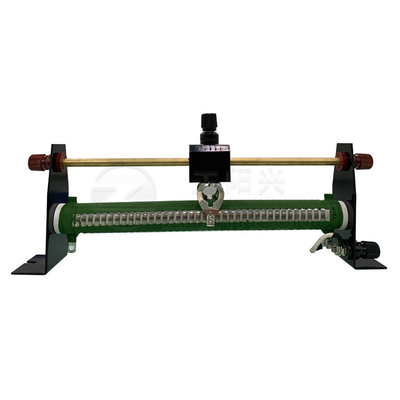

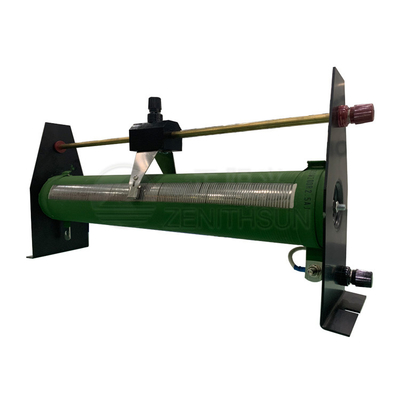

5000W Model High Power Slide Wirewound Variable Load Resistors
Structure :
1.DS Series resistor,high temperature resistance ceramic tube used as the resistance matrix,is wound with chrominum alloy wire,then coated with high temperature &non-flammable resin for protection to let resistors with better appearance and heat dissipation effect,after natural drying,baking at different temperatures before assembly.
2.DS series resistor,realize continuous adjustment,step values can be adjusted according to customer requirements.
3.Single resistor can be made into load bank,or multiple resistors can be combined in series and parallel to an adjustable load bank, so as to realize high-power adjustment and meet the voltage and current parameters,which is also flexible and convenient.
Features:
1.DS series resistors are the most high-end in terms of material sele ction and workmanship compared to other adjustable resistors,so they are deeply recognized by users. According to the needs of users, the resistor can be equipped with temperature control device and digital scale.
DS Series high-power adjustable resistor is upgraded from DR series high-power wirewound resistor, and its resistance value can be adjusted manually to meet the needs of the circuit.
Due to different application occasions,high-power adjustable resistor is also known as sliding rod resistor,sliding wire resistor, sliding wire rheostat,hand-push adjustable resistor, hand-swing adjustable resistor and so on.
DS series resistors are the most high-end in terms of material selection and workmanship compared to other adjustable resistors,so they are deeply recognized by users.
According to the needs of users, the resistor can be equipped with temperature control device and digital scale.
Specification
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | B---D---F---G---J--K |
| Rated Load | 40℃,rated voltage,1hour | △R≤±(3％+0.1Ω) |
| Short Time Overload | 5 times rated power for 10s | △R≤±(0.2％+0.1Ω) |
| Dielectric Withstand Voltage | 2 times Rated Power Voltage +1kv AC 60s (with grounding), leakage current 2.5mA ; 2 times Rated Power Voltage +2kv AC 60s (with grounding), leakage current 2.5mA ; |
△R≤±(0.1％+0.05Ω) |
| Insulation Resistance | 500V DC | ≥10GΩ1Min |
| Terminal Tensile Strength | 40N | No off |
| Vibration resistance | 1.5mm,10-55-10Hz,each 2hours | No damage,No off |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 500hours | △R≤±(3％+0.1Ω) |
| Low Temperature Resistance Testing | store at -65℃±3℃ for 2H | △R≤±(1%+0.1Ω) |
| High Temperature Resistance Testing | store at 70 ℃± 2 ℃ for 16h, connect the rated voltage DC circuit for 1s | △R≤±(1%+0.1Ω) |
| Non-flammability | 10 times rated power, power on for 5s | without combustion |
Applications:
DS series resistors are the most high-end in terms of material selection and workmanship compared to other adjustable resistors,so they are deeply recognized by users.According to the needs of users,the resistor can be equipped with temperature control device and digital scale.
