Product Details:
|
| Rated Power: | 100W-20KW | Resistance: | 1Ω - 10KΩ |
|---|---|---|---|
| Tolerance: | ±10% | Colour: | Gray |
| Type: | Variable | Moved By: | Castors |
| High Light: | Handle Wheel power resistor bank,Portable power resistor bank,Portable load bank resistors |
||

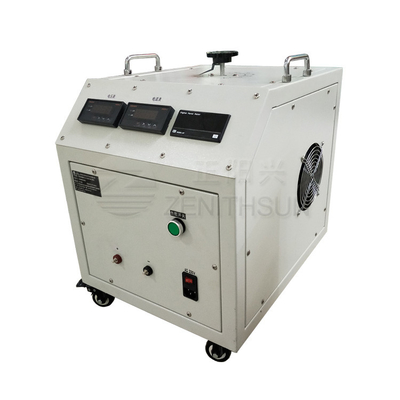

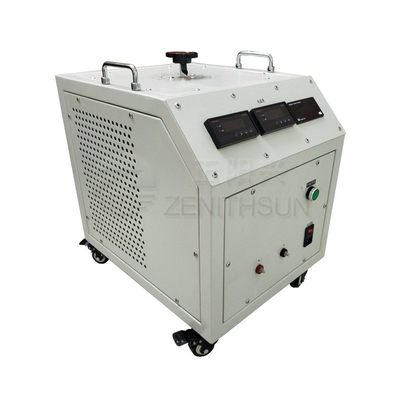

Portable Type Variable Power Resistors Load Bank Controlled By Handle Wheel
Structure :
1.Beautiful Appearance,Multifunctional Configuration,High Accuracy Adjustment ,safe & convenient for use.
2.BC1 series Variable Rheostat is wound with copper or chromium-alloy wire as a resistance element. Except for the slide contact surface,the entire component is coated with a high-temperature,non-flammable resin. After cooling and drying, insulation is applied through a high-temperature process.Then,a centered rotating adjuster component is installed,which slides along the resistance element and varies the resistance to the desired value.
Features:
1.BC1 series Variable Rheostats called varistors or potentiometers. Used as two connections terminals of varistors or as a potentiometer with three connection terminals. When single rheostat cannot meet its power, which can be increased by connection of multiple rheostats, max up to 6 connected rheostats.
2.On the basis of BCI sharp, the resistors can be equipped with temperature control device,for safety, beauty and convenience,we recommend that it should be made into the form of load bank,which can realize the installation of heat dissipation fan, temperature control protection,overcurrent and overvoltage protection, alarm device,multifunctional digital display (digital display of power, resistance,current,voltage, frequency, etc.) and single unit with AC and DC dual-purpose functions.
Specification:
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | B---D---F---G---J--K |
| Rated Load | 40℃,rated voltage,1hour | △R≤±(3％+0.1Ω) |
| Short Time Overload | 5 times rated power for 10s | △R≤±(0.2％+0.1Ω) |
| Dielectric Withstand Voltage | 2 times Rated Power Voltage +1kv AC 60s (with grounding), leakage current 2.5mA ; 2 times Rated Power Voltage +2kv AC 60s (with grounding), leakage current 2.5mA ; |
△R≤±(0.1％+0.05Ω) |
| Insulation Resistance | 500V DC | ≥10GΩ1Min |
| Terminal Tensile Strength | 40N | No off |
| Vibration resistance | 1.5mm,10-55-10Hz,each 2hours | No damage,No off |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 500hours | △R≤±(3％+0.1Ω) |
| Low Temperature Resistance Testing | store at -65℃±3℃ for 2H | △R≤±(1%+0.1Ω) |
| High Temperature Resistance Testing | store at 70 ℃± 2 ℃ for 16h, connect the rated voltage DC circuit for 1s | △R≤±(1%+0.1Ω) |
| Non-flammability | 10 times rated power, power on for 5s | without combustion |
Applications:
Product Image
