Product Details:
|
| Rated Power: | 1kW-3kW | Resistance: | 1Ω - 100KΩ |
|---|---|---|---|
| Tolerance: | ±5% | Inductance: | Inductive Or Non-inductive |
| Waterproof Grade: | IP20 Or IP56 | Ends: | Flying Leads Or Metal Terminals. |
| High Light: | 2000Watt high precision resistor,Aluminum Cased high precision resistor,Aluminum Cased Wirewound Power Resistor |
||
2000Watt High Precision Power Aluminum Cased Wirewound Resistors
Structure :
1.The resistors core components are made of insulating and high-temperature resistant materials as the resistors framework,evenly wound with high-quality alloy wires.
2.Metal aluminum shell potted with high insulation non-combustible electronic paste,so that the aluminum shell and the resistance core components are closely combined into a solid entity,not affected by external air,vibration and dust,high stability and thermal conductivity.
3.ZENITHSUN series including ASZ(trapezium shape),ASC (ship shape)and ASCB(ultrathin shape),the mould can get more than 20 species to let resistors suit for environment installation and application.ASZ successfully applied for the national patent .Aluminum resistor is also called braking resistor or charge resistor or bleeder resistor or current-limited resistor or ageing resistor or load resistor.Resistance to shock,strength power ,fast dissipation heat ,high stability,long life.Aluminum resistor is one of core products of ZENITHSUN.ZENITHSUN is the most complete varieties and most powerful production aluminum resistors of manufacturer in Pearl River Delta,and even in the whole country of China.
Features
1.Internal wire wound resistor is protected by external Aluminum Case from external mechanical force,humidity and dusty.
2.Suitable for industrial machinery and equipment,electric power distribution.
3.Durable and can withstand stronger vibration.
4.Low temperature coefficient and better heat conduction.
5.Support Low Inductance requirement.
6.Precision Resistance Tolerance :+/-0.1% ,+/-0.5%, +/-1% ,+/-5% ,+/-10%.
Applications
Widely used in frequency converter,elevator,hoisting,ship,electric power,welding,power supply,military industry,aviation,wind power generation,solar power generation,automation equipment,railway system and other industries,and can be made into load banks according to the customers requests.
Specification
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | B---D---F---G---J--K |
| Temperature Coefficients | R0:Room Temperature(T0)Resistance Value R1:Room Temperature T0+100℃(T1)Resistance Value |
±100～±250PPM/℃ |
| Rated Load | 40℃,rated voltage,1hour | △R≤±(3％+0.1Ω) |
| Short Time Overload | 5 times rated power for 10s;10 times rated power for 5s;25 times rated power for 1s | △R≤±(2％+0.1Ω) |
| Dielectric Withstand Voltage | 2 times Rated Power Voltage +1kv AC 60s (with grounding), leakage current 2.5mA ; 2 times Rated Power Voltage +2kv AC 60s (with grounding), leakage current 2.5mA ; |
△R≤±(0.1％+0.05Ω) |
| Insulation Resistance | 1000V DC | 50M-1000MΩ1Min |
| Terminal Tensile Strength |
wire diameter ≤1.5 with 20N,wire diameter ≥1.5 with 40N, |
No off |
| Vibration resistance | 1.5mm,10-55-10Hz,each 2hours | No damage,No off |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 500hours | △R≤±(3％+0.1Ω) |
| Thermal Shock | At 30℃,30min,-55℃,15min | △R≤±(0.5％+0.1Ω) |
| Humidity Resistance | Temp.:40±2℃ ,Humidity: 90％-95％.240hours | △R≤±(3％+0.1Ω) |
| Low Temperature Resistance Testing | store at -65℃±3℃ for 2H | △R≤±(1%+0.1Ω) |
| High Temperature Resistance Testing | store at 70 ℃± 2 ℃ for 16h, connect the rated voltage DC circuit for 1s | △R≤±(1%+0.1Ω) |
| Non-flammability | 10 times rated power, power on for 5s | without combustion |

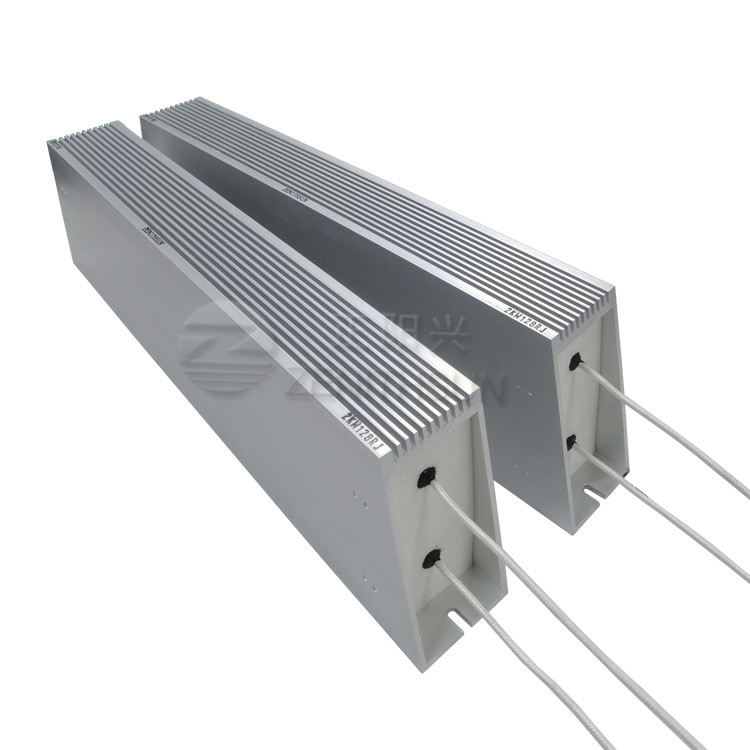

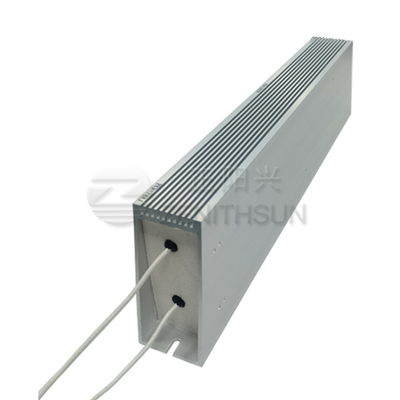

Products Image
