Product Details:
|
| Rated Power: | 5W-100W | Resistance Value: | 0.5-220kohm |
|---|---|---|---|
| Tolerance: | 5% Or 10% | Colour: | White |
| TCR: | ± ~ 260PPM | Insulation Resistance: | 500VDC |
| High Light: | 25W Ceramic Cement Resistor,Encased Power Ceramic Cement Resistor,Encased Power Non-Flammable Resistor |
||
10W Non-Flammable Ceramic Cement Encased Power Resistors With High Surge
Structure:
1.ZENITHSUN Charging resistor is ceramic rod with the resistance winding wire (the voltage-equalizing resistor is made of metal oxide film resistor core,instead of wire wound resistor core),put the wire wound resistance core into different sizes and shapes ceramic shells,sealed with special incombustible heat-resistant cement electronic filler,by natural drying in the shade and baking at high temperature.
2.For high resistance value,wires are replaced by metal oxide films.
3.Charging resistor is designed to charge the energy storage capacitor slowly when the frequency converter is just powered on,which is also called buffer resistor.
4.Voltage-equalizing resistor with leading out in the form of circular end or a square end.
5.The main function of the voltage-equalizing resistor is to use the voltage dividing principle to ensure that the voltage on each capacitor is equal.
6.Power Range: 5W-25W for voltage-equalizing resistors,20W-80W for charging resistors;
7.Strong Impact Resistance,High Insulation,Special for frequency converter server.
Features:
1.Excellent stability in high temperature,resistant to humidity and shock with economic price.Best suitable for heat dissipation and small linear temperature coefficient,can be PCB mounted.
2.Non Flammable Construction &Low Inductance type available.
3.ZENITHSUN is equipped to design and produce custom components to meet many design and reliability demands.
4.Contact us with your specific needs.
5.Conforms to the ROHS standard and the LEAD-FREE non-lead standard.
Specification:
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | ±1％,±5％,±10％ |
| Temperature Coefficients | R0:Room Temperature(T0)Resistance Value R1:Room Temperature T0+100℃(T1)Resistance Value |
±300PPM/℃ Max |
| Insulation Voltage | 1KV DC 60s | No flashover, no damage |
| Insulation Resistance | 500V DC | 1000MΩ1Min |
| Short Time Overload | 10 times rated power for 5s(KN);2.5 rated power for 5s(MO) |
△R≤±(2％+0.1Ω) |
| Humidity Resistance | Temp.:40±2℃ ,Humidity: 90％-95％.1000hours | △R≤±(2％+0.1Ω) |
| Load Life | Temp.:40±2℃ ,Humidity: 90％-95％,rated voltage 1.5hours 30 min "Off" ,continuous 1000hours |
△R≤±(5％+0.1Ω) |
| Heat Resistance | Tin Temp.:350±10℃,time::3±0.5s,immersion depth:distance from component body 2±0.5mm | △R≤±(1％+0.05Ω) |
| Solderability | Tin Temp.:235±5℃,time::3±0.5s | Solder area≥95% |
| Non-flammability | 5times/10 times/16 times rated power, AC voltage for 5mins | without combustion,open circuit allowed |
Applications:
Complete insulation suitable for printed circuit boards,power supplies,voltage dividers,motor controllers, automotive applications,power electronics circuits.

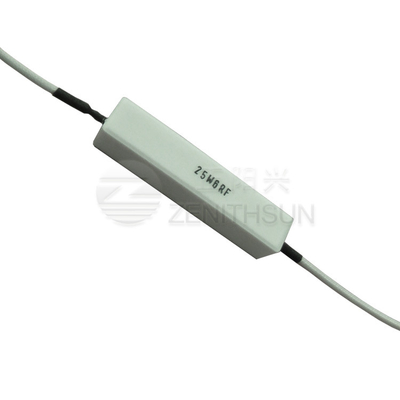

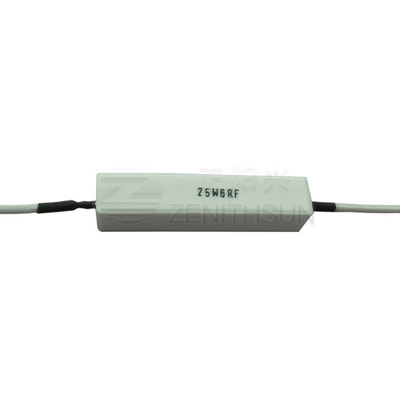

Product Image :
