Product Details:
|
| Power Rating: | 1watts To 10 Watts | Resistance Value: | Low To 0.5mΩ |
|---|---|---|---|
| Tolerance: | ±1%, ±5% | Material: | Ni-Cr, Ni-Cu，Manganin Or Other Alloy |
| TCR: | ±25ppm/℃, ±50ppm/℃, ±100ppm/℃ | Operating Temperature Range: | -55℃ To +275℃ |
| High Light: | Bare Metal Precision Shunt Resistor,Milliohm Precision Shunt Resistor,Metal Element milliohm resistor |
||
Bare Metal Element Precision Shunt Resistor,Milliohm Resistor,for Current Sensing and Shunt Applications
Structure:
Alloy wires is made into specified shape.
Features:
1. Low resistance value is 0.0005Ω and high stability, other value is available.
2. Operating ambient temperature: -55 ～+125℃
3. Can be according to customers requirement to form the special type.
4. Please supply the data of current or wire diameter you may apply.
5. According to mounting requirements, there are 5mm, 10mm... etc.
6. For custom specifications, please contact us to discuss the details.
Specification:
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | ±1% (F) |
| Temperature Coefficient | Typical is ± 100 (- 10 °C to + 80 °C) consult factory if application is TC sensitive | ±25～±250PPM/℃ |
| Rated Load | 40℃, rated voltage,1hour | △R≤±(1％+0.05mΩ) |
| Short Time Overload | 5 times rated power for 5s | △R≤±(0.2％+0.05mΩ) |
| Dielectric Withstand Voltage | 1000V DC 60s | △R≤±(0.1％+0.05mΩ) |
| Insulation Resistance | 500V DC | ≥10GΩ1Min |
| Terminal Tensile Strength | 3kg 30s | No off |
| Vibration resistance | 1.5mm,10-55-10Hz,each 2hours | No damage,No off |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 500hours | △R≤±(5％+0.05mΩ) |
| Thermal Shock | Standing at 30℃ for 30 minutes, then standing at -55℃ for 15 minutes | △R≤±(2％+0.05mΩ) |
| Humidity | Temp.: 40±2℃, RH: 90％-95％, 240 hours | △R≤±(3％+0.05mΩ) |
| Non-flammability | 1-6 times of rated power, for 5 minutes. | without combustion |
Application:
Mainly used in various current detection resistors, such as small household appliance control boards, mobile power supplies and mobile devices, industrial control, automotive electronics, the Internet of things, mobile phones, etc. they are widely used. The main reason is that the product requirements are constantly improving, requiring low power consumption and high performance. Therefore, the application of milliohm resistors will be more and more widely.

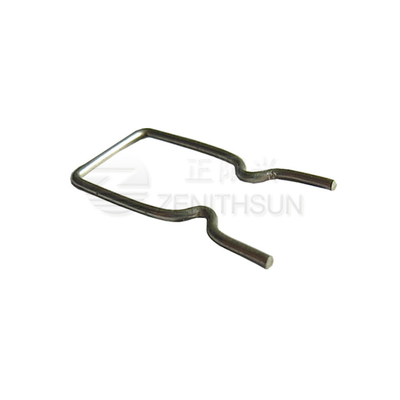

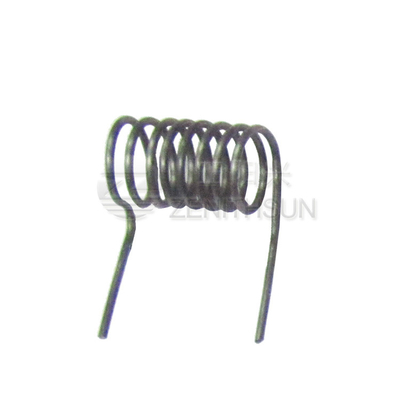

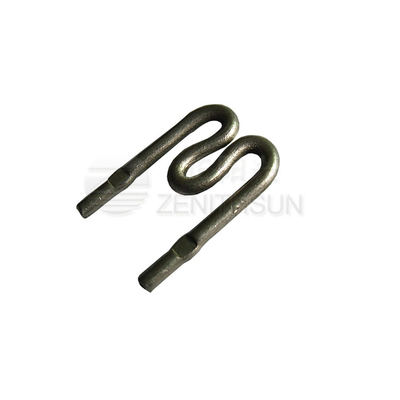

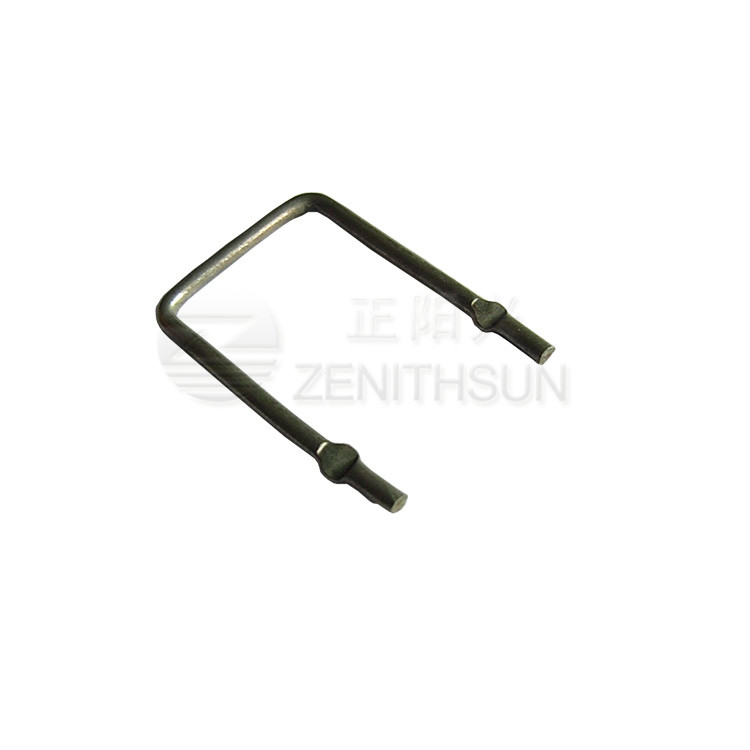

Product Image:
