Product Details:
|
| Rated Power: | 100W | Resistance: | 1Ω - 100KΩ |
|---|---|---|---|
| Tolerance: | ±5%,±10% | Colour: | Golden |
| Ends: | Terminals | Low Inductive: | Specify By Adding N |
| High Light: | 100W4R LED Load Resistor,Aluminum Housed LED Load Resistor,LED Aluminum Housed Resistor |
||

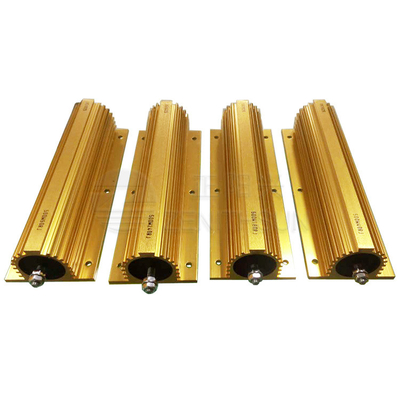

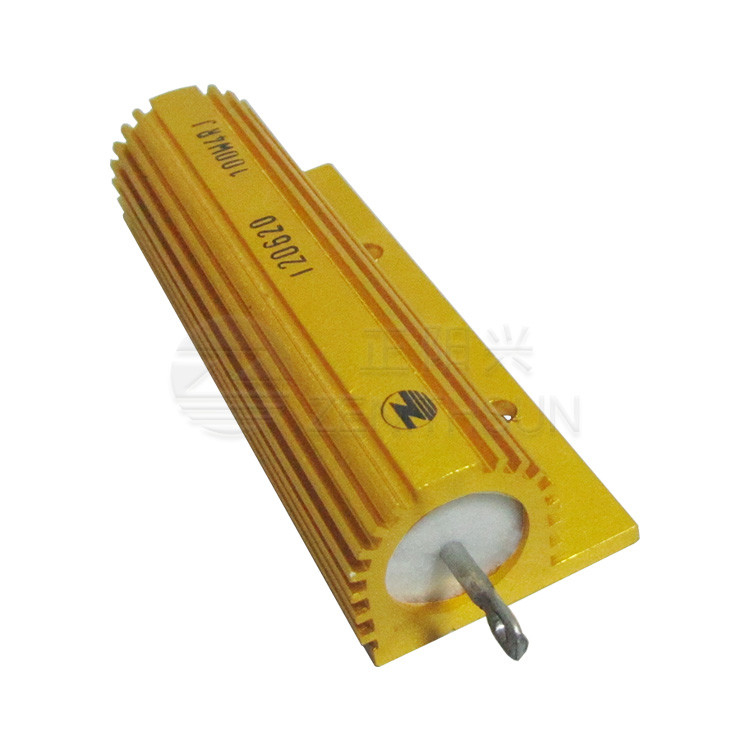

100W4R Aluminum Housed Wirewound LED Load Resistors with Chassis Mount
Structure
1.The resistors core components are made of insulating and high-temperature resistant materials as the resistors framework,evenly wound with high-quality alloy wires.Metal aluminum shell potted with high insulation non-combustible electronic paste,so that the aluminum shell and the resistance core components are closely combined into a solid entity,not affected by external air,vibration and dust,high stability and thermal conductivity.
2.The aluminum shell is made of high-quality industrial 6063 aluminum,and the surface is high-temperature anodized to achieve attractive appearance and great heat dissipation.
Features
1.We supply standard and custom designed aluminium housed resistors for general-purpose use,power supplies,power generation and the traction industry.
2.The RH is a range of extremely stable,high quality wire-wound resistors capable of dissipating high power in a limited space with relatively low surface temperature.
3.The power is rapidly dissipated as heat through the aluminium housing to a specified heatsink.
4.The resistors are made from quality materials for optimum reliability and stability.
5.We can test resistors to conform to relevant international or customer specifications.
6.Loading,braking,pulse,charging,discharging,starting,buffering,discharging,ect.
Specification
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | B---D---F---G---J--K |
| Temperature Coefficients | R0:Room Temperature(T0)Resistance Value R1:Room Temperature T0+100℃(T1)Resistance Value |
±100～±250PPM/℃ |
| Rated Load | 40℃,rated voltage,1hour | △R≤±(3％+0.1Ω) |
| Short Time Overload | 5 times rated power for 10s;10 times rated power for 5s;25 times rated power for 1s | △R≤±(2％+0.1Ω) |
| Dielectric Withstand Voltage | 2 times Rated Power Voltage +1kv AC 60s (with grounding), leakage current 2.5mA ; 2 times Rated Power Voltage +2kv AC 60s (with grounding), leakage current 2.5mA ; |
△R≤±(0.1％+0.05Ω) |
| Insulation Resistance | 1000V DC | 50M-1000MΩ1Min |
| Terminal Tensile Strength | wire diameter ≤1.5 with 20N,wire diameter ≥1.5 with 40N,terminal tension 20N copper end /stainless steel end,40N |
No off |
| Vibration resistance | 1.5mm,10-55-10Hz,each 2hours | No damage,No off |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 500hours | △R≤±(3％+0.1Ω) |
| Thermal Shock | At 30℃,30min,-55℃,15min | △R≤±(0.5％+0.1Ω) |
| Humidity Resistance | Temp.:40±2℃ ,Humidity: 90％-95％.240hours | △R≤±(3％+0.1Ω) |
| Low Temperature Resistance Testing | store at -65℃±3℃ for 2H | △R≤±(1%+0.1Ω) |
| High Temperature Resistance Testing | store at 70 ℃± 2 ℃ for 16h, connect the rated voltage DC circuit for 1s | △R≤±(1%+0.1Ω) |
| Non-flammability | 10 times rated power, power on for 5s | without combustion |
Applications
Widely used in Inverters,automation equipment,acoustics,prescaler,aging power testing,auto accessories,auto LED industry,Balancing resistor,filter,crowbar,capacitor charge & discharge.
Key Features/How to order
1.Rated Power :5W-300W;
2.Resitance Value:0.5 ohm -33K ohm;
3.Custom designs
4.Inductive or non-inductive
