Product Details:
|
| Materials: | Stainless Steel Element And Bakelite Mounting Bracketss | Rated Power: | 6600W |
|---|---|---|---|
| Resistance Value: | 35Ohm | Tolerance: | 10%, 5% Are Available |
| High Light: | 6600W Neutral Grounding Resistor,35Ohm Neutral Grounding Resistor,Neutral Grounding industrial resistor |
||

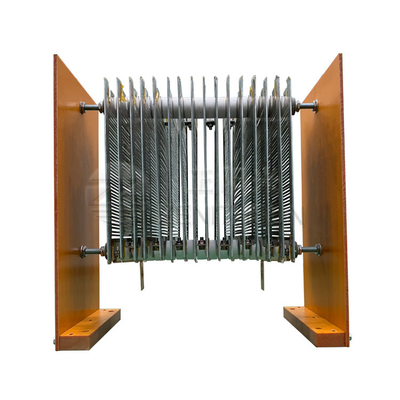

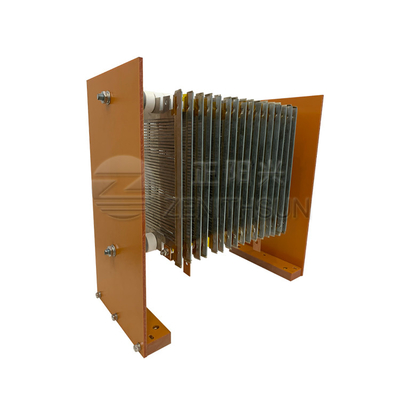

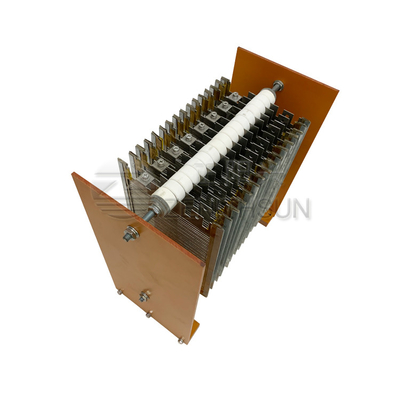

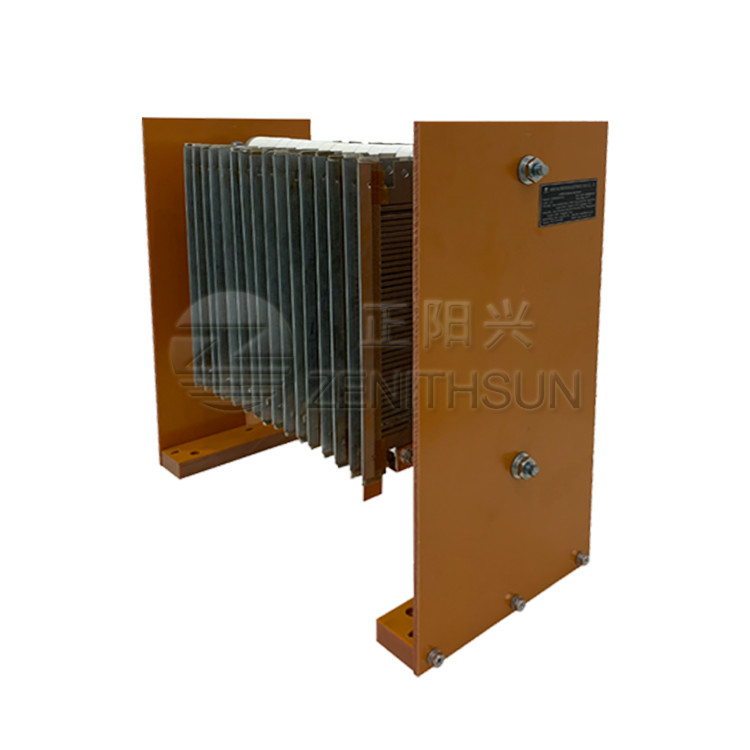

6600W 35Ohm Neutral Grounding Resistor for generator, Industrial Metal Grid Brake Resistor
Structure:
1.Shenzhen ZENITHSUN Electronics Tech. Co., Ltd 6600W 35Ohm Resistor is made of low temperature coefficient chromium alloy stainless steel grid sheet. According to the requirements of customers, stamped into different sizes and shapes, and combined in series and parallel.
2.Resistors sheets elements are separated by insulating material or fixed by shaped high-temperature resistant porcelain pad, which provide good insulation.
3.The terminals are also stainless steel materials.
Feature:
1.Enough Power Capacity, can withstand 6600W continuously.
2.Robust,long service life.
3.Compact / light to save space.
4.Limited thermal drift on resistance value ( stable resistance value even at high temperature).
5.Cost effective
Application:
ZENITHSUN Stainless Steel Resistors are suitable for AC or DC high current applications.
The most common application fields are motor control,braking and speed regulation,and can also be used for neutral grounding,harmonic filtering and load banks solutions;
The rugged structure is especially suitable for heavy equipment in industries with high impact and strong vibration, environment,such as port/wharf industrial control crane, mining equipment,oil drilling,construction tower crane and other application fields of lifting, speed regulation, dynamic braking or long-term load.
The unit is an ideal product for continuous use under extreme conditions (high vibration,high temperature and corrosive environment). The metal sheet can ensure the continuous use and the minimum resistance value fluctuation.
ZENITHSUN can provide customer with personalized design to better meet your needs,so as to greatly save space and cost.
Specification:
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | F--G--J--K |
| Temperature Coefficient | R0:Room Temperature(T0)Resistance Value R1:Room Temperature T0+100℃(T1)Resistance Value |
±100～±250PPM/℃ |
| Rated Load | 40℃,rated voltage,1hour | △R≤±(3％+0.1Ω) |
| Short Time Overload | 5 times rated power for 10s | △R≤±(0.2％+0.1Ω) |
| Dielectric Withstand Voltage | 1000V DC | ≥10GΩ1Min |
| Insulation Resistance | 500V DC | No off |
| Terminal Tensile Strength | 40N | No off |
| Vibration resistance | 1.5mm,10-55-10Hz,each 2hours | No damage,No off |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 500hours | △R≤±(3％+0.1Ω) |
| Low Temperature Resistance Testing | store at -65℃±3℃ for 2H | △R≤±(1%+0.1Ω) |
| High Temperature Resistance Testing | store at 70 ℃± 2 ℃ for 16h, connect the rated voltage DC circuit for 1s | △R≤±(1%+0.1Ω) |
| Non-flammability | 10 times rated power, power on for 5s | without combustion |
Image:
