Product Details:
|
| Type: | Film Resistor | Application: | Medical CT And X-ray Machines |
|---|---|---|---|
| Rated Power: | 8W-300W, 8W-300W | Resistance: | 1Ω ~10T, 1Ω - 1GΩ |
| Supplier Type: | Original Manufacturer | Technology: | Thick Film |
| Package Type: | Throught Hole | Resistance Tolerance: | ±1%,±2%,±5%,±10% |
| Temperature Coefficient: | 10PPM-150PPM, 20PPM-150PPM | Tolerance: | ±1%,±2%,±5%,±10% |
| Color: | Black Or Customized | Lead Material: | Gold Plated |
| High Light: | 300W Thick Film Power Resistor,200W Thick Film Chip Resistors,100W Ultra Precision Resistors |
||
100W 200W 300W Thick Film Power Resistor Ultra Precision Non Inductive
100W 200W 300W High Voltage Thick Film Non Inductive Ultra Precision Resistors
Structure
1.Screen printing ,resistor film printed layer with thickness of tens of microns,sintered at high temperature.The matrix is 95% aluminum oxide ceramic, with good thermal conductivity and high mechanical strength.The resistor film with precious metal ruthenium slurry, with stable electrical properties. 2.Technological Process: electrode printing → electrode sintering → resistor printing →resistor sintering → medium printing →medium sintering, then resistance adjustment, welding, encapsulation and other processes.
Features
1.Work under continuous high voltage environment. 2.Power Range :8W-300W . 3.Non-Inductive,Resistance-high voltage,small size,high power,long life,Moisture Resistance ,High Stability. 4.Leading out end adopts internal thread or external thread.
Product Dimension
| rated power | 8w-300w |
| resistance | 1-1G Ω |
| tolerance | ±1%,±2%,±5%,±10% |
| color | Black or customized |
| temperature coefficient | 20PPM-150PPM |
| lead material | Gold Plated |

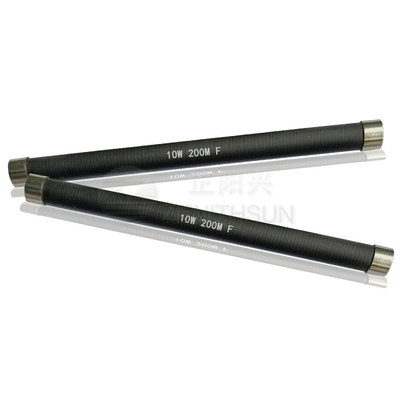

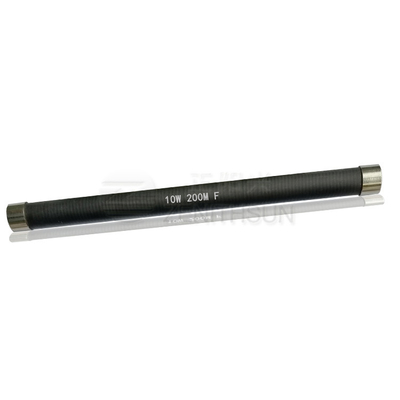

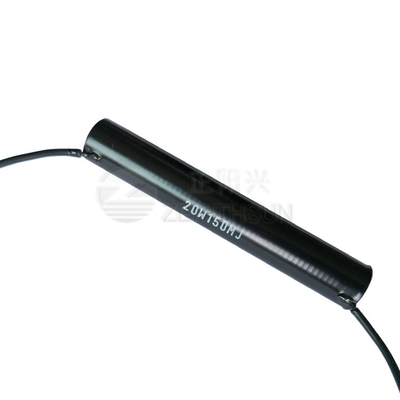

Product Details
Application
Production Time : 2-3 weeks . Widely used in high voltage power equipment, medical CT and X-ray machines, high voltage testing equipment, high voltage power supply, vacuum equipment, high voltage frequency converter, voltage divider, high voltage circuit, capacitor discharge circuit,high voltage buffer circuit, environmental protection equipment, electrostatic dust removal equipment,power system, high voltage instruments and meters, pulse modulator, imaging equipment, impulse voltage generator, etc .
Product Advantage
Company Profile
Packing And Shipping
Shipping
1. By courier,such as DHL,FED-EX,UPS,etc,it is door to door, usually 3-4 day to arrive;
2. By air to the airport,usually 5-7 days to arrive;
3. By sea to sea port,usually 15-30 days to arrive;
If you delivery time is very urgent, we suggest you choose by courier or by air.
If it is not very urgent,we will suggest you choose by sea,it is very cheap.
For more details,please contact with us.
