Product Details:
|
| Features: | High Power, Water Cooled | Type: | Fixed Resistor |
|---|---|---|---|
| D/C: | New | Application: | Medical Equipment, Etc. |
| Rated Power: | 800W | Resistance: | 1Ω~1TΩ |
| Supplier Type: | Original Manufacturer | Cross Reference: | ZMP800 |
| Media Available: | Datasheet, Photo, EDA/CAD Models, Other | Tolerance: | NA |
| Technology: | Thick Film | Package Type: | Surface Mount |
| Resistance Tolerance: | ±5%,±10%,±20% | Temperature Coefficient: | ≤ ±250ppm/℃ |
| Operating Temperature: | -55℃~+350℃ | Brand: | Furnace Power Resistor |
| Packaging: | NA | Power (Watts): | 800W |
| Composition: | Thick Film | Coating, Housing Type: | Not Applicable |
| Size / Dimension: | 60x60x15 | Height - Seated (Max): | 25 |
| Lead Style: | NA | Circuit Type: | Not Applicable |
| Number Of Resistors: | 1 | Number Of Pins: | M4 |
| Insulation Voltage: | 6KV~12KV DC | Color Of Power Resistor: | Black |
| Material Of Terminal: | Copper Screw | Delivery Of Water Cooling Resistance: | 4~5 Working Days |
| MOQ Of Thick Film Resistor: | 1 Piece | Packing Of Non-inductive Resistor: | Cartons |
| Guarantee: | 12 Months | Cooling Method: | Water Cooled |
| Port: | Shenzhen | ||
| High Light: | 800W High Wattage Resistor,Thick Film High Wattage Resistor,800W thick film resistor |
||

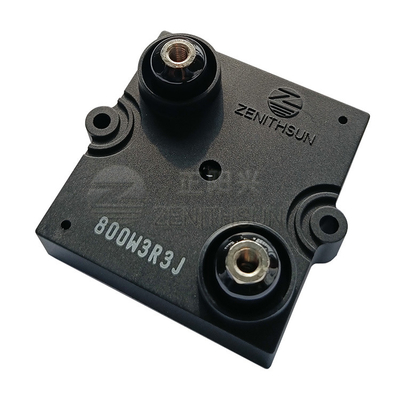

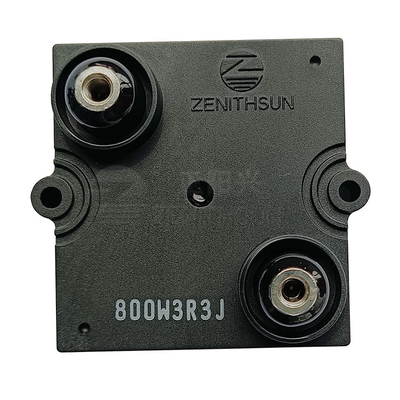

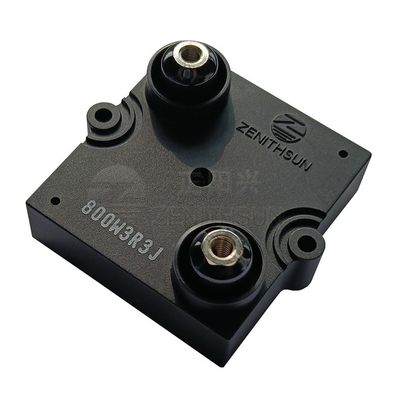

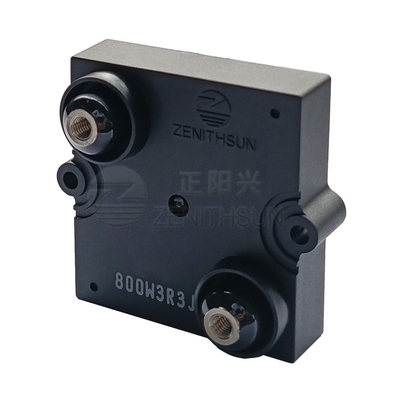

Thick Film 800W High Wattage Resistor For Mounting Onto A Heatsink
800W Power Resistor for Mounting onto a Heatsink, Thick Film Technology, Non inductive
ZENITHSUN Thick Film Resistors contains High Voltage Resistors, Dividers, Non-inductive High Power Resistors, have high power capacity, good wet & heat resistance, good resistance to electrical impulses and high voltage. The resistor substance is 96% aluminium oxide ceramics, and material of film is pulp of ruthenium. Resistance range can be 1Ω~10TΩ, and tolerance of resistance value can be ±0.1% ~ ±10% , TCR can be ±15ppm ( 25℃~105℃) if request.
Resistance Core: 96% Al2O3
Resistance Range : 0.1Ω~1MΩ
Tolerance: ±5%~±10%
TCR: ±150,±300ppm
Max.working voltage: 5000VDC
Insulation Voltage: 6000VAC,50HZ,Imax≤10mA
Insulation Resistance 500V, ≥10GΩ
Resistor Terminal: M5 Bolts, Max. Torque 2Nm
Mounting: M4 Bolts, Max. Torque 1.8Nm
Climate temp.: -55℃~+155℃
Partial Discharge: 4KV,<10p
Features
1. Recommendations for mounting onto a heatsink to enhance the heat dissipation.
2. The bottom case is attached to the system heatsink,and the resistor dissipates the heat through the heat exchange between the bottom case and the heatsink.
3. The ambient temperature here refers to the bottom case temperature of the resistor,which is generally referred to as the temperature in the center of the bottom case.
4. Easy mounting,low thermal radiation of the case ;
