200KW 10KV DC Portable Dummy Reactive Load Bank Adjustable Generator Testing

200KW10KV,DC Adjustable Portable Reactive Dummy Load Banks,Generator Testig

Structure

1.An assembly-type enclosure contains DR series or DQ series or AS series or other high power rating resistors ,connected in series or in parallel.
2.The cabinet enclosure is steel structure owning good performance in shock resistance, coated with scratch-resistance powder-coat paint and high-temperature system to form glossy cover,insulation and looking protective face, many colors are available.
3.There are ventilation holes in the enclosure for better dissipation.Prevention rain and dust cover are installed on the top of cabinet.(installed in outdoor or indoor are available)Dissipating heat fan and temperature protection device installation are available.
4.Portable,light-weight construction with casters,lifting eyes and lift truck channels make is easy to maneuver.Four glove-ready handles for moving and lifting.
5.Portable load banks are constructed using heavy gauge aluminized steel for years of reliable service. These units are fitted with casters or rubber shock mount feet for easy movement from one test site to another using common pickup trucks or vans.

Introduction

1.Single-phase AC Load & three-phase AC Load are available, used for detection and maintenance of AC equipment, loading, aging, simulated load test, etc.
2.Rated Power Range:1kVA - 5MVA ( other on request).
3.Current Range:0.1A - 15000A.
4.Working Voltage Range:110V-690VAC triphase or single phase.
5.Working Modes:fixed type,variable type with load steps or continuing adjustable type.
6.It can be designed with RS232 and RS485 to connect with PC for remote control.
7.Air cooled type and water cooled type are available.
8.Load Banks are devices designed to provide electrical loads for testing power sources such as generators and Uninterruptible Power Supplies (UPS). Load banks are also used to reduce “wet stacking” problems in diesel engines of backup generating systems.

Specification

Applications

Used in standard generator testing,power supply equipment,battery discharge,frequency converters,elevator,Hoisting machinery and construction machinery,Rolling mill ,Farrowed machine, centrifuge,UPS power,Generator,transformers
Starting,braking,speed regulation and load testing,Medical treatment,motor vehicle,armed forces and industrial control environment.Factory testing of engine generator sets;

Load Bank Production Scope:
ZENITHSUN has more than 20 years of R & D and manufacturing experience in the resistor industry, and has a professional R & D team & production team for load banks;It has perfect test equipment and test scheme, constantly updates and technology to respond to the requests of customers from all walks of life, and produces different types (air-cooled / water-cooled) and different styles of load banks.

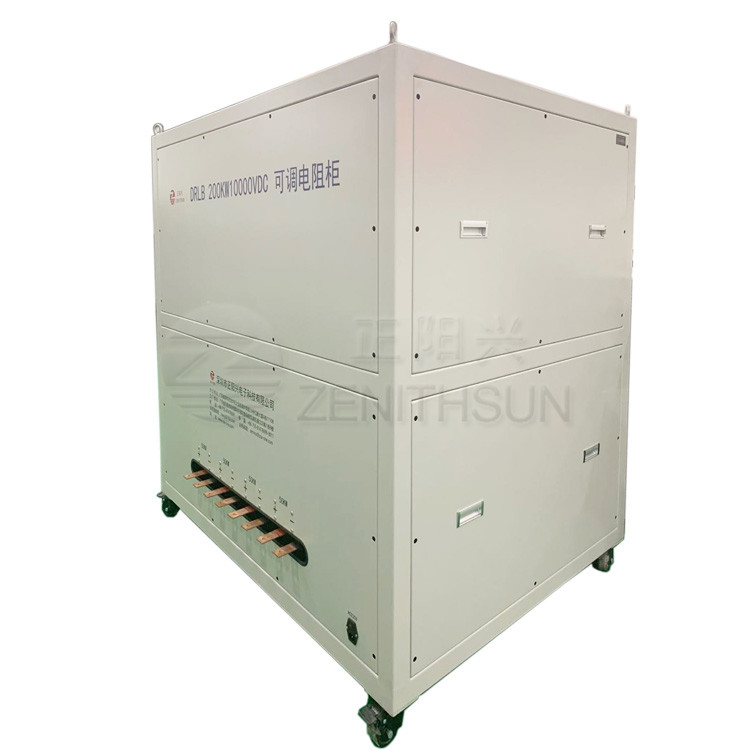

Product Image
