380V 40A Hand Carried 3 Phase Load Bank Portable AC Variable Resistive

380V40A Hand Carried Portable AC Variable Resistive Dummy Load Banks

Structure

1.An assembly-type enclosure contains DR series or DQ series or AS series or other high power rating resistors ,connected in series or in parallel.
2.The cabinet enclosure is steel structure owning good performance in shock resistance, coated with scratch-resistance powder-coat paint and high-temperature system to form glossy cover,insulation and looking protective face, many colors are available.
3.There are ventilation holes in the enclosure for better dissipation.Prevention rain and dust cover are installed on the top of cabinet.(installed in outdoor or indoor are available)Dissipating heat fan and temperature protection device installation are available.
4.Portable,light-weight construction with casters,lifting eyes and lift truck channels make is easy to maneuver.Four glove-ready handles for moving and lifting.

Introduction

1.Single-phase AC Load & three-phase AC Load are available, used for detection and maintenance of AC equipment, loading, aging, simulated load test, etc.
2.Rated Power Range: 1kVA - 5MVA ( other on request).
3.Current Range: 0.1A - 15000A.
4.Working Voltage Range: 110V-690VAC triphase or single phase.
5.Multiple safety protection functions can be designed according to requirements:short -circuit,over-current, over-voltage, over-load,over temperature,fan fault,audible and visual alarm device, etc.
6.It can be designed with RS232 and RS485 to connect with PC for remote control.
7.Air cooled type and water cooled type are available.

Specification

Applications

1.Standard generator testing;
2.Power supply equipment
3.Battery discharge
4.Frequency converters
5.Elevator
6.Hoisting machinery and construction machinery.
7.Rolling mill ,Farrowed machine, centrifuge
8.UPS power;
9.Generator ,transformers
10.Starting,braking,speed regulation and load testing
11.Medical treatment,motor vehicle,armed forces and industrial control environment.

Dimensions

Zenithsun load bank is customized according to customers requirement,the size depends on the power rating.
Please contact us to know the exact dimensions.

Load Bank Production Scope:
ZENITHSUN has more than 20 years of R & D and manufacturing experience in the resistor industry, and has a professional R & D team & production team for load banks;
It has perfect test equipment and test scheme, constantly updates and technology to respond to the requests of customers from all walks of life, and produces different types (air-cooled / water-cooled) and different styles of load banks.

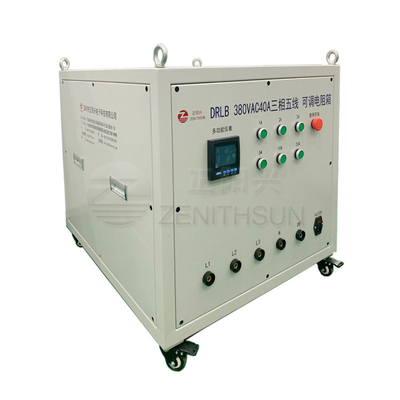

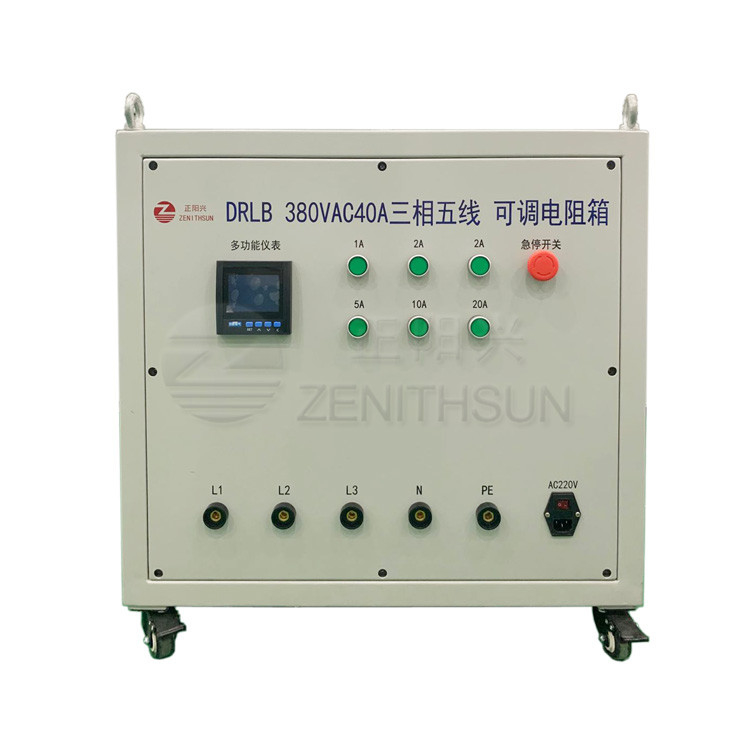

Product Image
