Product Details:
|
| Rated Power: | 10W-80W | Resistance Value: | 0.5-220kohm |
|---|---|---|---|
| Tolerance: | 5% Or 10% | Colour: | White |
| TCR: | ± ~ 260PPM | Insulation Resistance: | 500VDC |
| High Light: | 30W Ceramic Cement Resistor,220R Ceramic Cement Resistor,Wire Wound Low Inductance Resistor |
||

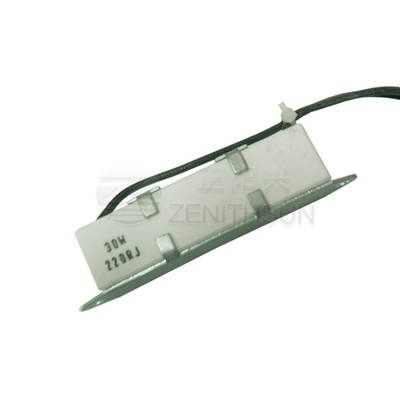

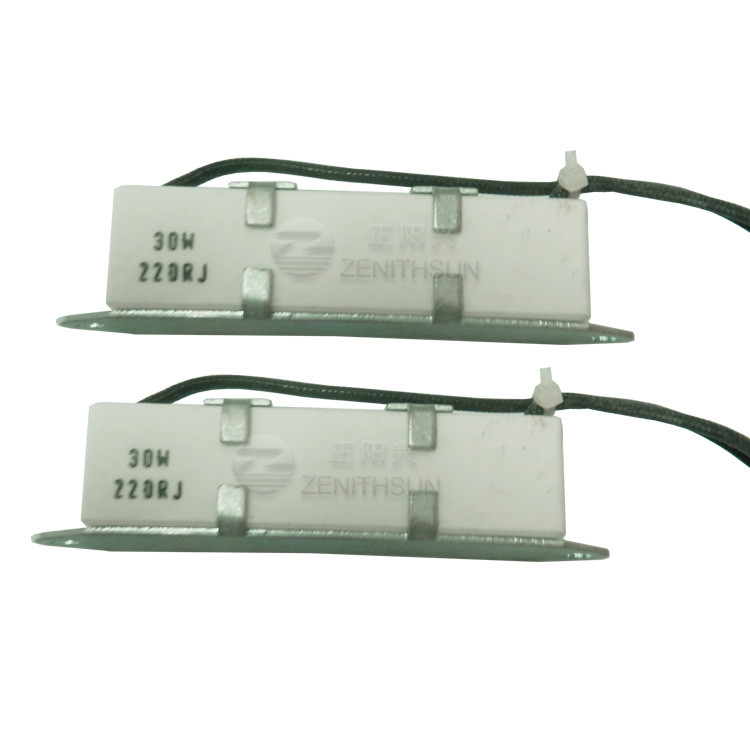

30W220R Low Inductance Wirewound Power Ceramic Cement Resistors
Structure:
1.ZENITHSUN Cement resistor is ceramic rod with the resistance winding wire or a wire wound resistance core is formed on the glass fiber,put the wire wound resistance core into different sizes and shapes ceramic shells,sealed with special incombustible heat-resistant cement electronic filler,by natural drying in the shade and baking at high temperature.
2.For high resistance value,wires are replaced by metal oxide films.
3.Charging resistor is designed to charge the energy storage capacitor slowly when the frequency converter is just powered on,which is also called buffer resistor.
4.Voltage-equalizing resistor with leading out in the form of circular end or a square end.
5.The main function of the voltage-equalizing resistor is to use the voltage dividing principle to ensure that the voltage on each capacitor is equal.
6.Strong Impact resistance,high Insulation,special for frequency converter server.
Features:
1.Small size,resistant to vibration,humidity and heat,good dissipation,low noise and no annual shift in resistance value,low price
2.ZENITHSUN is equipped to design and produce custom components to meet many design and reliability demands.
3.Contact us with your specific needs.
4.Conforms to the ROHS standard and the LEAD-FREE non-lead standard.
Specification:
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | ±1％,±5％,±10％ |
| Temperature Coefficients | R0:Room Temperature(T0)Resistance Value R1:Room Temperature T0+100℃(T1)Resistance Value |
±300PPM/℃ Max |
| Insulation Voltage | 1KV DC 60s | No flashover, no damage |
| Insulation Resistance | 500V DC | 1000MΩ1Min |
| Short Time Overload | 10 times rated power for 5s(KN);2.5 rated power for 5s(MO) |
△R≤±(2％+0.1Ω) |
| Humidity Resistance | Temp.:40±2℃ ,Humidity: 90％-95％.1000hours | △R≤±(2％+0.1Ω) |
| Load Life | Temp.:40±2℃ ,Humidity: 90％-95％,rated voltage 1.5hours 30 min "Off" ,continuous 1000hours |
△R≤±(5％+0.1Ω) |
| Heat Resistance | Tin Temp.:350±10℃,time::3±0.5s,immersion depth:distance from component body 2±0.5mm | △R≤±(1％+0.05Ω) |
| Solderability | Tin Temp.:235±5℃,time::3±0.5s | Solder area≥95% |
| Non-flammability | 5times/10 times/16 times rated power, AC voltage for 5mins | without combustion,open circuit allowed |
Applications:
Widely used in AC and DC circuits such as electronics,electrical appliances,power supply,audio and household appliances.
It is one of the most common ideal electronic components in electronic circuits.
