Product Details:
|
| Rated Power: | 100kW | Rated Load Voltage: | 415Vac 3 Phase 50Hz |
|---|---|---|---|
| Load Type: | Resistive | Cooling System: | Force Fans Air Cooling |
| IP: | 20-56 | Tolerance: | 5% Or 10% |
| High Light: | Resistive Load Bank 100kW,Resistive Load Bank 415Vac,100kW Load Bank |
||
Adjustable Resistive Load Bank 100kW 415Vac Triphase For Generator Testing
Structure
1.An assembly-type enclosure contains DR series or DQ series or AS series or other high power rating resistors ,connected in series or in parallel.
2.The cabinet enclosure is steel structure owning good performance in shock resistance, coated with scratch-resistance powder-coat paint and high-temperature system to form glossy cover,insulation and looking protective face, many colors are available.
3.There are ventilation holes in the enclosure for better dissipation.Prevention rain and dust cover are installed on the top of cabinet.(installed in outdoor or indoor are available)Dissipating heat fan and temperature protection device installation are available.
4.Portable,light-weight construction with casters,lifting eyes and lift truck channels make is easy to maneuver.Four glove-ready handles for moving and lifting.
Features
1.ZENITHSUN load bank is a continuous duty,portable,lightweight load bank that is easily transport, set up and operated by one technician.
2.High-power rating,good dissipation heat,low temperature coefficient,long life,suitable for long time load working.
3.Small size,great exterior,styles diversification.
Specification
| Load Bank Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | ±5％ |
| Profile Dimension | According to the drawings in the technical agreement | As per drawing requirements |
| Power on for adjusting | According to the datas in the technical agreement | meters & fans operation normal |
| Insulation Resistance | 1000VDC±20% | 100MΩ1Min |
| Voltage to ground | normal 2KV DC for 60s, ultra voltage as required | No spark, no breakdown |
| Sealing Test | 1-2MPa,pressure maintaining for 4H | No leakage,no deformation |
Applications
1.Standard generator testing;
2.Power supply equipment
3.Battery discharge
4.Frequency converters
5.Elevator
6.Hoisting machinery and construction machinery.
7.Rolling mill ,Farrowed machine, centrifuge
8.UPS power;
9.Generator ,transformers
10.Starting,braking,speed regulation and load testing
11.Medical treatment,motor vehicle,armed forces and industrial control environment.
Dimensions
Zenithsun load bank is customized according to customers requirement,the size depends on the power rating.
Please contact us to know the exact dimensions.

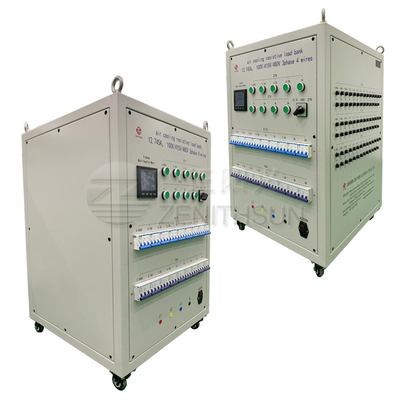

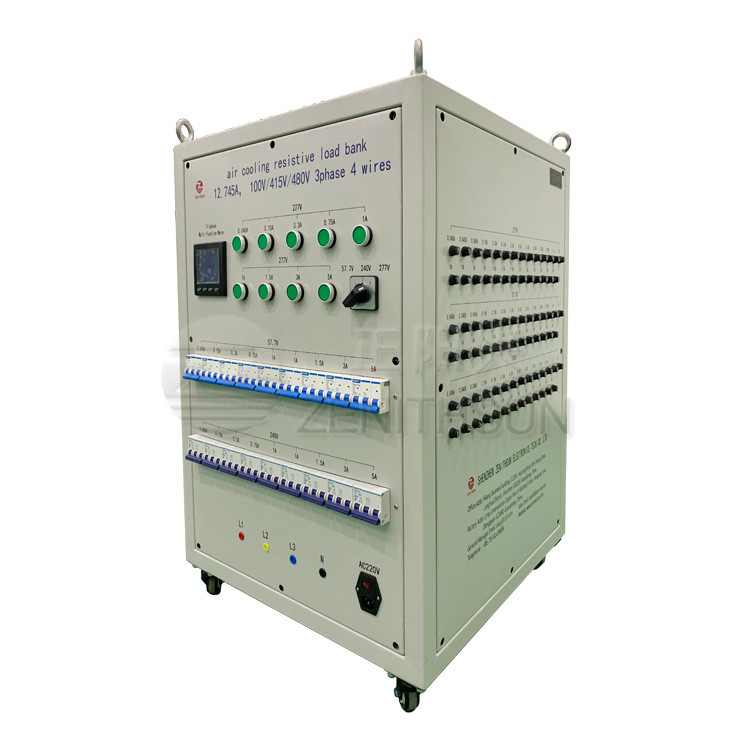

Product Image
